SPECIFICATION OF UT ELECTRONICS

• Technical Features

  - FPGA + DSP Chip
  - DUAL Display for A-Scan
  - Max.128 channel A-Scan
  - Remote Monitor Display
  - Noise Protection Circuit
  - Up to 20K PRF



  OPTIONAL FUNCTION

  - Pulse Voltage : 250V, adjustable
  - Pulse Width : 60 ns to1 ms
  - Damping : 500, or 50 ohms
  - PRF : 20KHz
  - Gain : 0 db to 80 db in 0.1 step
  - Filter : 0.5 to 25 MHz
  - Waveform Display : FW, HW or RF
  - Trigger Source : External, Software
  - Gate : Indepedent 3 gates
  - Distance gain correction : DAC Curve
  - I / O : 32 I/O
  - Ethernet : 10/100 Ethernet



  MEET TO MOST STANDARDS



  - Bead Tracking Monitor

  - Motion control View
    Monitor

  - Motion Control System

  - Auto Testing Strip
    Viewer Monitor

  - Auto Testing System

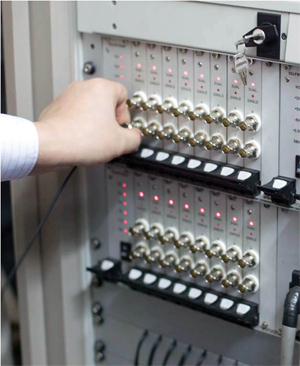

  - Pulser/Receiver
    Boards Rack

  - A-Scan View Monitor

  - A-Scan System

  - HUB

  - CCTV ; CCTV

  - Report Viewer Monitor

  - Report Printer

  - Report
•
